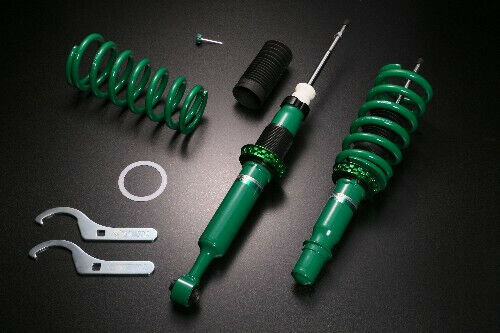

TEIN has always aimed to stay at the forefront of offering high performance suspension with a strong emphasis on meeting our customers demand for affordability. Their latest products reflect their efforts in meeting those needs while maintaining their well-known manufacturing standards for quality. NEW for 2016 - Street Advance Z. The latest generation of TEINs existing Street Advance suspension kit incorporates many of the same technologies that have made them so popular by enthusiasts, but now made even more affordable by TEINs streamlined manufacturing processes and their new fully sealed damper structure. These new manufacturing processes drastically reduce starting prices for the new line for complete kits.

Never before has Tein been able to provide such high quality performance into an incredibly affordable package, until now. To date, this has been one of their proudest achievements. Thread-type adjustable, Twin-Tube, Uses OE Mounts, Durable and Reliable, Damping Force Adjustable, EDFC Compatible. Thanks to its smooth compression and high durability, the dust boot guards the piston rod from damage, and keeps foreign material out of the shock absorber. (Some vehicles use their OE dust boots). Cold formed with SAE9254 steel (minimum tensile strength 200 kgf/mm2), TEINs springs are outstandingly sag-proof and boast extreme resiliency. Superior rust protection is ensured with a highly durable powder coating that does not peel or flake. TEINs high-quality springs can be used without worries, in any conditions.

TEIN takes pride in their products and each one is built to be the best quality possible.  TEIN coats each Flex Z with "ZT Coating" that prevents rust and has multiple layers to ensure the best finish.

Front:

• Damping Force Adjustment: YES
• Full-Length Ride-Height Adjustable: NO
• Upper Mount: OEM
• Recommended Ride Height (mm): -55
• Recommended Ride Height (inch): -2.2
• Ride Height Adjustable Range Max Low (mm): -87
• Ride Height Adjustable Range Max Low (inch): -3.4
• Ride Height Adjustable Range Max High (mm): -50
• Ride Height Adjustable Range Max High (inch): -2
• Ride Height Adjustable Range Recommended Low (mm): -65
• Ride Height Adjustable Range Recommended Low (inch): -2.6
• Ride Height Adjustable Range Recommended High (mm): -50
• Ride Height Adjustable Range Recommended High (inch): -2
• Spring Rate (kgf/mm): 7
• Spring Rate (lbs/in): 392
• Spring Part#: S8P08-13070
• Spring Free Length (mm): 195
• Spring I.D. (mm):

Rear:

• Recommended Ride Height (mm): -45
• Recommended Ride Height (inch): -1.8
• Ride Height Adjustable Range Max Low (mm): -96
• Ride Height Adjustable Range Max Low (inch): -3.8
• Ride Height Adjustable Range Max High (mm): -16
• Ride Height Adjustable Range Max High (inch): -0.6
• Ride Height Adjustable Range Recommended Low (mm): -55
• Ride Height Adjustable Range Recommended Low (inch): -2.2
• Ride Height Adjustable Range Recommended High (mm): -35
• Ride Height Adjustable Range Recommended High (inch): -1.4
• Spring RATE (kgf/mm): 5
• Spring RATE (lbs/in): 280
• Spring Spring Part#: JD050-1D215-3
• Spring Free Length (mm): 215
• Spring Spring I.D. (mm):

EFDC:

• EDFC Compatibility: COMPATIBLE
• EDFC Fitting Detail:
• EDFC Motor Kit 1: EDK05-10100
• EDFC Motor Kit 2:
• EDFC Front Strut Kit, Extension Kit:
• EDFC Rear Strut Kit, Extension Kit:

Fitment Notes:

4Dr/4Cyl
