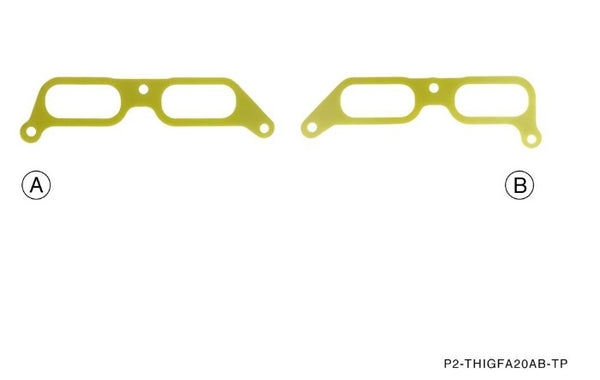

Phase 2 Motortrend (P2M) Thermal Intake Manifold Gasket - Subaru BRZ / Scion FR-S / Toyoyta GT86 FA20

$38.00

Barcode: P2-THIGFA20-TP

Brand: P2M (Phase 2 Motortrend)

Availability: In Stock

This listing is for a quantity of 1 thermal intake manifold gasket for the Nissan S14/15 SR20DET Engine from the 240sx. This thermal design helps ensure the best possible seal. - Proprietary sourced fiber material with excellent thermal barrier properties- 3mm thickness / precision CNC cut to spec- Gasket material can withstand up to 220 deg. C- Controlled testing showed a...

Description
Reviews

This listing is for a quantity of 1 thermal intake manifold gasket for the Nissan S14/15 SR20DET Engine from the 240sx. This thermal design helps ensure the best possible seal.

- Proprietary sourced fiber material with excellent thermal barrier properties
- 3mm thickness / precision CNC cut to spec
- Gasket material can withstand up to 220 deg. C
- Controlled testing showed a standard average deviation of 10 deg. Celsius between intake plenum and cylinder head
- Under certain circumstances depending how the engine operates, the deviation can be more than 10 deg. Celsius.
- The gasket act as a thermal barrier between the cylinder head and intake manifold, keeping the intake plenum cooler
- By keeping the intake plenum cooler allows denser air to enter the engine combustion chamber to make more consistent power without heat soaking the intake plenum and charged air.
- Kit comes with high temp gasket maker to apply around the intake ports and coolant passage on both sides of the gasket to ensure air tight seal

Application:

Scion: FR-S

Subaru: BRZ

Toyota: 86
